A GENERAL-PURPOSE MACHINE

THAT BREAKS THE STATUS QUO

OVERVIEW

Traditionally, most label printers are classified into lightweight Desktop printers with limited functionalities or heavy Industrial printers with a variety of features. This often leads to a compromise between convenience and performance.

However, the user will no longer have to make that trade-off. The POSTEK GX series printer is compact enough to fit into desktop spaces while maintaining the high-level performance expected for industrial printers.

Within its desktop housing, the GX series printer harbors many of the features dedicated to full-size industrial-grade printers. It also comes with features such as a 4.5-inch touch screen and high precision media positioning mechanism that make the GX series one of a kind.

FEATURES

Small Footprint

Space can be much like time. Hard to notice its importance until it is running out. Measured at only 259 mm (W) x 354 mm (D) x 205 mm (H), the compact size of the GX series printer offers unparalleled advantages regardless of the application.

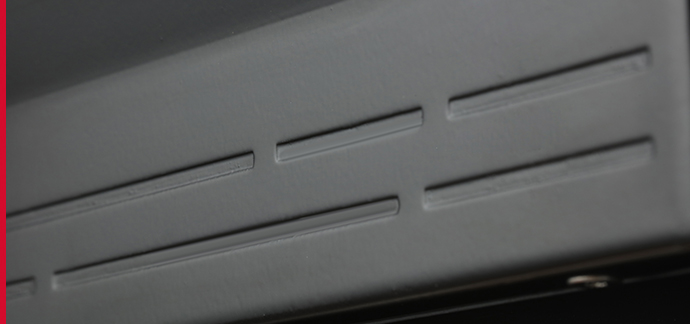

Full Metal Construction

Overall, desktop printers are constructed with a plastic casing for their lightweight and low cost. This won't be the case with the GX series printer. Driven by our desire to provide the ultimate user experience and our constant push to break the convention, the GX series printer features full metal construction for a low-noise, smooth printing experience that can't be found in the industry. The full metal construction not only offers much needed tranquility to crowded office spaces, but its tough, rigid metal structure is perfectly suited for harsh environments in industrial applications.

4.5-inch Touch Screen User Interface

Just like how graphical user interface was predicted to be the future of personal computers, we believe touch screen user interfaces will be an indispensable feature for printers moving forward. The value added through convenience makes a screen one of the most effective tool at increasing work efficiency. That is why the GX series, a printer dedicated to providing unparalleled user experience, features a huge 4.5-inch touch screen. Combined with an advanced user interface daily operations or troubleshooting/maintenance is more straightforward than ever. Empowering the user to spend less time worrying and more time working.

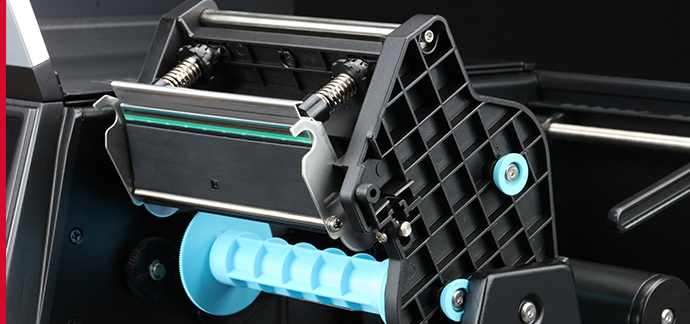

Flip-Up Printhead Module

The GX printer's printhead module, which includes the printhead assembly, ribbon supply and ribbon take-up mechanisms, can flip up to an upright position, leaving substantial operating space for consumables loading and maintenance handling.

Media Tension Mechanism

To ensure accurate printing, labels and tags come with positional marks such as label gaps, notches, or black marks. The marks are then picked up by one of the two media sensors on the GX series printer to have an accurate idea of where the label or tag begins. If the media comes loose, the real media length between the media sensor and the line of printing will be longer, leading to an inaccurate positional detection. An innovative built-in media tension mechanism in the GX printer offers continuous tension to the media regardless of the media's type or size. Allowing for pinpoint positional accuracy on the GX printers at all times. Since the meFEATURES dia tension mechanism has yielded great results for media of all types, we offer an optional user-adjustable media spindle casing that supports both 1.5-inch and 3-inch media cores to take full advantage of the versatility that GX offers.

Adjustable Ribbon Tension Mechanism

As demonstrated in the features mentioned above, we have a strong commitment to user experience and performance. This commitment extends through all aspects of our design. Ribbon tension, one of the most important factors for determining printout quality, is no exception. As different widths of ribbon can be used, improper ribbon tension will have detrimental effects on the printout quality. Ribbon wrinkling or sliding against the media will make the label unusable. To prevent that, we implemented a user-adjustable ribbon tension mechanism that requires no prior experiences or training so you can have the best printout quality in the industry regardless of the application.

Advanced Dynamic Adaptive Precision Tuning (ADAPT)

Say goodbye to poor printout quality due to wear and tear on the platen roller, changing of media thickness, or different friction coefficient of media. With the innovative precise calibration algorithm, the best printout quality in the industry can be achieved with a simple automatic calibration process. Providing consistent, precise printout while drastically cutting back on the need for maintenance.

RFID Ready

The GX series is unique enough as it is, however, with the addition of an optional RFID package, the GX series really is one of a kind in the industry. Combined with POSTEK's signature user-friendly design and long list of unique RFID features, the GX series is easily one of the top choices for any RFID application.

Performance built-in

The TX series features an industry-leading four-core 1.8GHz MPU and a powerful GPU with 2D/3D graphics hardware acceleration. Providing ample processing power for consistent, high-demand print jobs as well as extensively customized software applications.

Built it, Store it, Run it

With more than 2G of RAM and 8G of flash, the TX series allows for never-before-seen use cases where the printer not only handles the majority of the processing, but data storing as well. Easily store tens of thousands of data files like Excel, label templates, fonts, and graphics directly on the printer, and print away with just a few taps on the printer’s screen.

Cuts the Cords, Connect the Freedom

Ditch the tangle of cords and revel in the freedom offered by the integrated Bluetooth/Wi-Fi module. Seamlessly connect to and oversee your printer ensemble from any location that suits you. Streamline your workflow and take control without being physically tethered to the printers.

OX Script

Printing without a computer have been possible for a few decades. However, it requires a pre-made templates to be stored on the printer and the template only have one or two parameter that can be modified in real time. With OX script, a POSTEK scripting language based off of python, templates are a thing of the past. Based on various pre-set conditions and requirements, every element of every label in every print job can be different from the one before it and the one after it. Who sets the conditions then? You may ask, and the answer is you do. OX scripts give you the freedom and flexibility to fully customize the printing script to best fit your needs.

OX Script, the new standard of customization

Through OX Script, one can easily create complex and extensive custom software for the printer. Enabling use cases never before seen. From reading/writing to cloud databases directly from the printer, accessing files stored locally on the printer, and creating User Interfaces specific to the application, OX Script offers an unprecedented level of freedom and customization. Breaking free of the requirement of a PC for complex use cases.

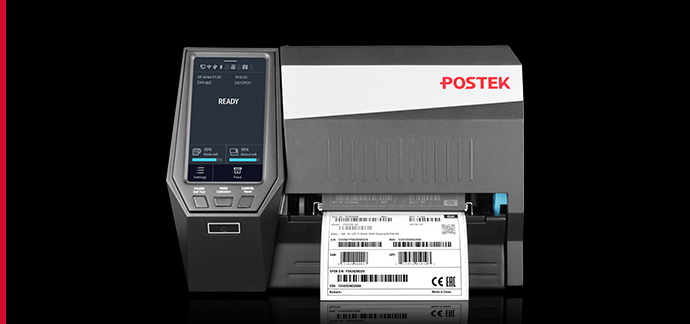

One Screen to do it all

Equipped with a 4.5-inch colored touch screen and a user-friendly interface, printing can be started directly using the printer’s screen. The big screen also allows for an incorporated keyboard, making it easy for real-time user input.

More information

Product support

Model:	GX2
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	200 dpi
Wireless Module:	Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz) Bluetooth 5.0
Max Print Speed:	10 ips
Max Print Width:	4.25″ (108 mm)
Max Print Length:	315″ (8000 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (38.1mm) / 3" (76.2mm) (optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler* :	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S AG120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Model:	GX3
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	300 dpi
Wireless Module:	Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz) Bluetooth 5.0
Max Print Speed:	8 ips
Max Print Width:	4.16″ (105.7 mm)
Max Print Length:	157″ (4000 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (38.1mm) / 3" (76.2mm)(optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler* :	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S AG120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Model:	GX6
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	600 dpi
Wireless Module:	Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz) Bluetooth 5.0
Max Print Speed:	5 ips
Max Print Width:	4.16″ (105.6 mm)
Max Print Length:	40″ (1016 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (38.1mm) / 3" (76.2mm)(optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 85% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler* :	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S AG120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Model:	GX2r
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	200 dpi
Wireless Module：	Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz) Bluetooth 5.0
Max Print Speed:	10 ips
Max Print Width:	4.25″ (108 mm)
Max Print Length:	315″ (8000 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
RFID Encoder:	Supports UHF EPC Gen 2, ISO 18000-6C protocols
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (38.1 mm) / 3" (76.2mm)(optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler*:	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S G120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Model:	GX3r
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	300 dpi
Wireless Module：	Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz) Bluetooth 5.0
Max Print Speed:	8 ips
Max Print Width:	4.16″ (105.7 mm)
Max Print Length:	157″ (4000 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
RFID Encoder:	Supports UHF EPC Gen 2, ISO 18000-6C protocols
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (25.4mm) / 3" (76.2mm)(optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler* :	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S G120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Model:	GX6r
Print Mode:	Direct Thermal and Thermal Transfer
Print Resolution:	600 dpi
Wireless Module：	WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0
Max Print Speed:	5 ips
Max Print Width:	4.16″ (105.6 mm)
Max Print Length:	40″ (1016 mm)
MPU:	64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:	GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:	2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:	Ⅰ
RFID Encoder:	Supports UHF EPC Gen 2, ISO 18000-6C protocols
Media Roll:	Maximum Media Width: 4.41″ (112 mm) Minimum Media Width: 0.98″ (25 mm) Maximum Outer Diameter: 6" (152 mm)Inner Diameter: 1.5" (25.4mm) / 3" (76.2mm)(optional) Media Thickness: 0.003" ~ 0.008" (0.08 ~ 0.2 mm), including liner
Minimum Label Length:	Tear-off: 0.2″ (5 mm) Peel-off: 0.47″ (12 mm) Cutter: A150/A400: 0.79″ (20 mm) AG120/AG300: 0.51″ (13 mm)
Ribbon:	Maximum Length: 984.25′ (300 m)Maximum Outer Diameter: 2.75"(70 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm) Ink side: Out
Media Sensor:	Reflective (Adjustable) and Transmissive (Two positions)
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets. User downloadable TrueType fonts.
Barcode Types:	1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc. 2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST
LCD Display:	4.5" LCD Capacitive Touchscreen
Power Source:	100 - 240 V， 50/60 Hz
Weight:	8.2 kgs （ 18 lbs)
Dimensions:	W 10.58" (268.8mm) x D 13.88" (352.5mm) x H 7.80" (198.2mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items:	External Label Rewinder, External Media Stand, and Cutters

Optional Configuration

*Factory dependent.

External Label Rewinder	Maximum Rewind Roll Diameter: 9″ (228.6 mm)
External Media Stand :	Maximum Outer Diameter: 10″ (254 mm)
Peeler*:	Minimum Label Length: 0.47″ (12 mm)
Cutters:	Type Rotary Cutter Guillotine
	Model A150S A400S G120S AG300S
	Max. Cut Width 120 mm 120 mm 118 mm 118 mm
	Min. Cut Length 20 mm 20 mm 13 mm 13 mm
	Cut Thickness (white cardboard paper) 0.20 mm 0.20 - 0.35 mm 0.15 mm 0.3 mm
	Cuts Guaranteed 600,000 600,000 600,000 600,000

Simplified Industrial RFID|Barcode Label Printer

A GENERAL-PURPOSE MACHINE THAT BREAKS THE STATUS QUO

OVERVIEW

FEATURES

Small Footprint

Full Metal Construction

4.5-inch Touch Screen User Interface

Flip-Up Printhead Module

Media Tension Mechanism

Adjustable Ribbon Tension Mechanism

Advanced Dynamic Adaptive Precision Tuning (ADAPT)

RFID Ready

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial RFID|Barcode Label Printer

Simplified Industrial
RFID|Barcode Label Printer

A GENERAL-PURPOSE
MACHINE THAT
BREAKS THE STATUS QUO
